Прямой термостатический комплект с предварительной настройкой Invena CD-74-P15-X, прикручивается, белый, 6 - 28 °С

CD-74-P15

Type of head: liquid
Head thread: M30×1.5
Maximum working pressure: 1 MPa (10 bar)
Max. temp: 110°C.
Adjustment scale: 0-5
Valve connection diameter: 1/2"
Material: valves made of brass covered with nickel. Mounting nut made of brass coated with nickel.
Screws equipped with o-ring
Temperature control range 6-28˚C

• 0 - flow cut-off
• * - 6°C
• 1 - 12°C
• 2 - 16°C
• 3 - 20°C
• 4 - 24°C
• 5 - 28°C

Application: for connecting radiators in central heating systems made of steel pipes. The head is suitable for all INVENA thermostatic valves. Liquid thermostatic head made of plastic in white. Heads with connection thread M30×1.5 from INVENA's offer and other manufacturers are suitable for the valves.

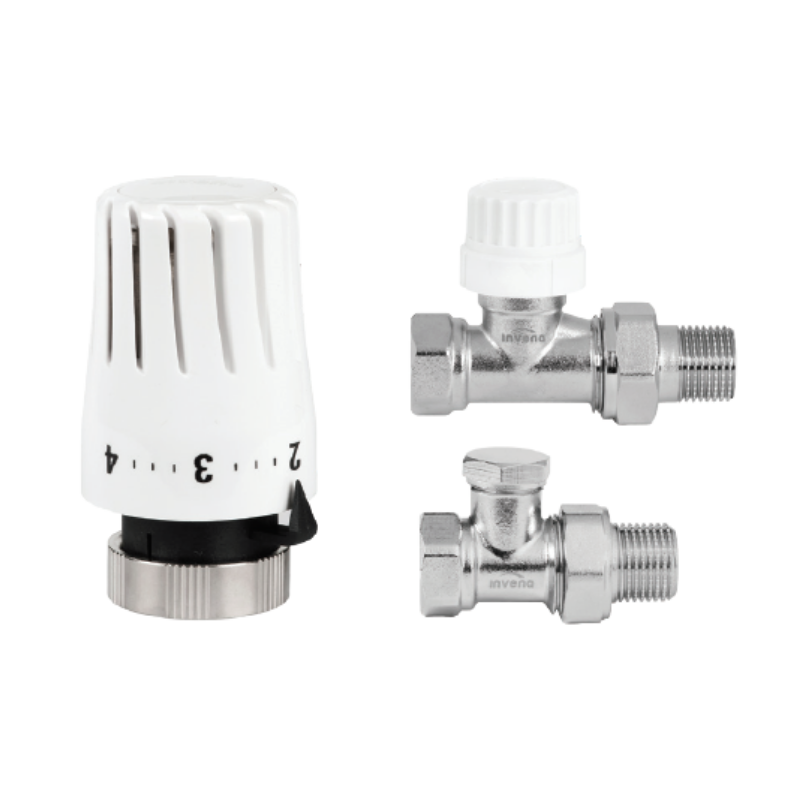

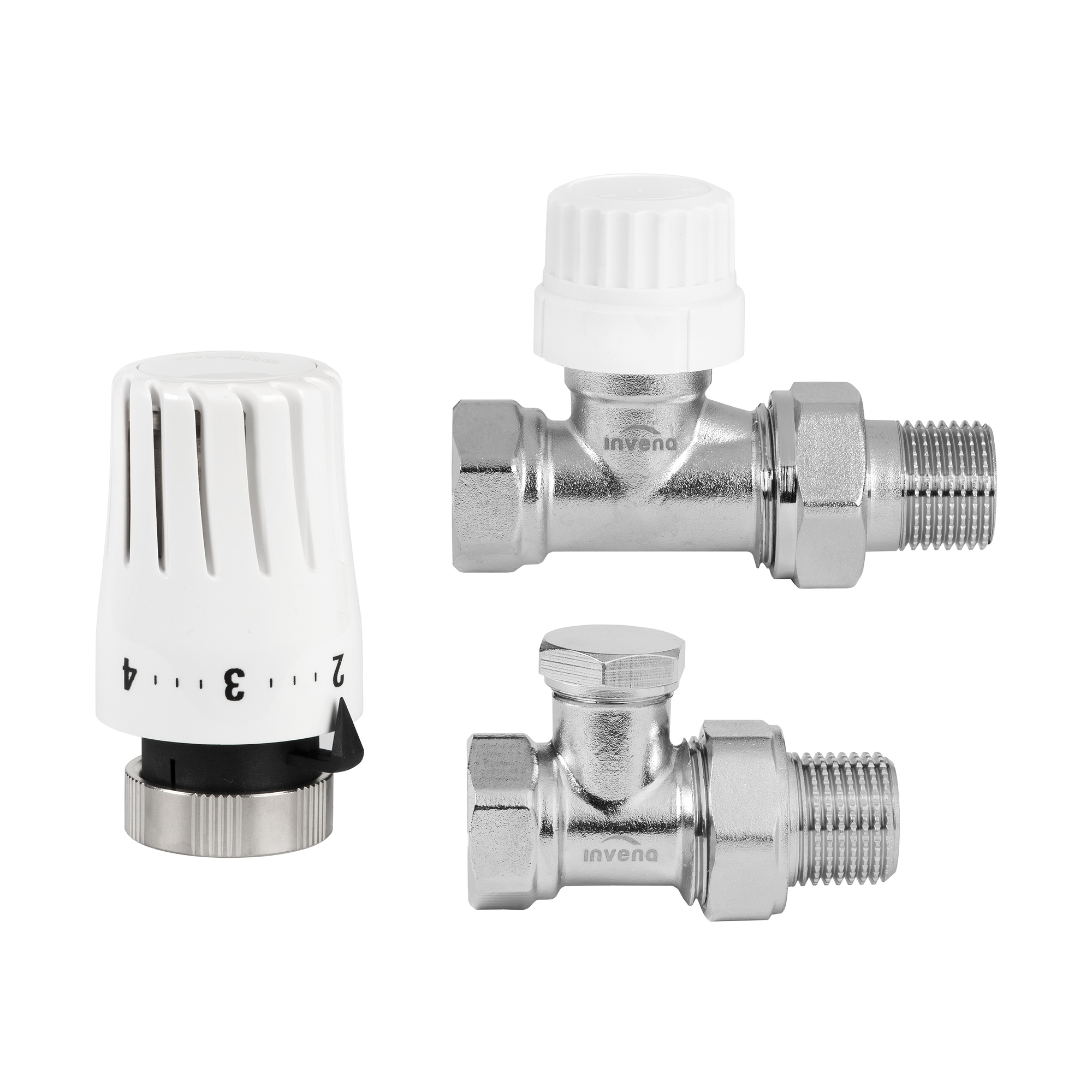

Included :

1. thermostatic head Mini 2 Prov
2. angle thermostatic radiator valve
3. angle return radiator valve, allowing to close the circulation of the heating medium
