Сварочный аппарат Telwin

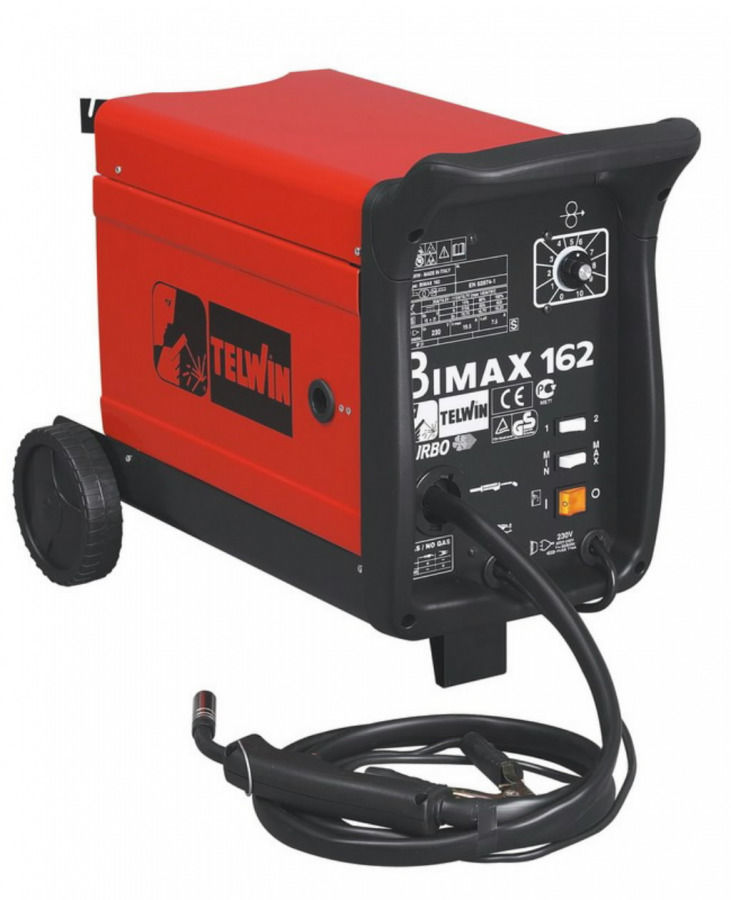

FLUX (NO GAS) and MIG-MAG (GAS) wire welding machine, with a duty cycle designed for intensive and professional use. It is light, compact, robust and performing and is also wheeled for absolute ease of transport and high comfort thanks also to the handle applicable to the handle located at the top.

Allows welding with wires from 0.6 to 1.2mm and it is possible to use 4 welding positions. It can weld steel wire with a diameter of Ø0.6 - 0.8mm, stainless steel wire from Ø0.8mm, aluminum wire from Ø0.8 - 1mm and flux cored wire from Ø0.8 - 1.2mm. It is equipped with thermostatic protection.

It has a power of 30 - 145A and is equipped with an adjustment knob, power setting buttons, power switch, handle with handle for easy transport, handle for wire compartment, wire compartment, wheel kit for movement, rear compartment placed objects and front support foot.

The maximum absorbed power is 3.7kW while at 60% it is 1.4kW, the duty cycle at 40 ° C is 15% at 115A.

It may happen that the time required for welding a certain piece is greater than the capacity of the machine, in this case when the welding machine reaches its limit it will go into lockout. Once it has cooled down and has reached the optimum temperature again, it will be possible to resume the operation by the user. It is important to leave the welding machine on even when it is in lockout mode and is cooling itself.

As standard it is equipped with 1.8m cables, a 150A ground clamp, a swivel / brush and a 2M MIG torch.

The weight is equal to 25kg while the dimensions are 640x350x470mm.

Features:
