Preces informācija

Kopējie parametri

Produkta veids

Kameras

Zīmols

DJI

Modelis

Zenmuse H20N with Night Vision

Krāsa

Melna krās.

Savietojamie dronu ražotāji

DJI

Saderīgi modeļi

Matrice 300 RTK

Garums

161 mm

Augstums

135 mm

Platums

178 mm

Svars

878 g

Obligātā garantija

24 mēn

Vai pamanīji kļūdu preces aprakstā, specifikāciju tabulā vai fotoattēlu galerijā? Ziņo mums

Preces krāsa var atšķirties no fotoattēlā redzamās.

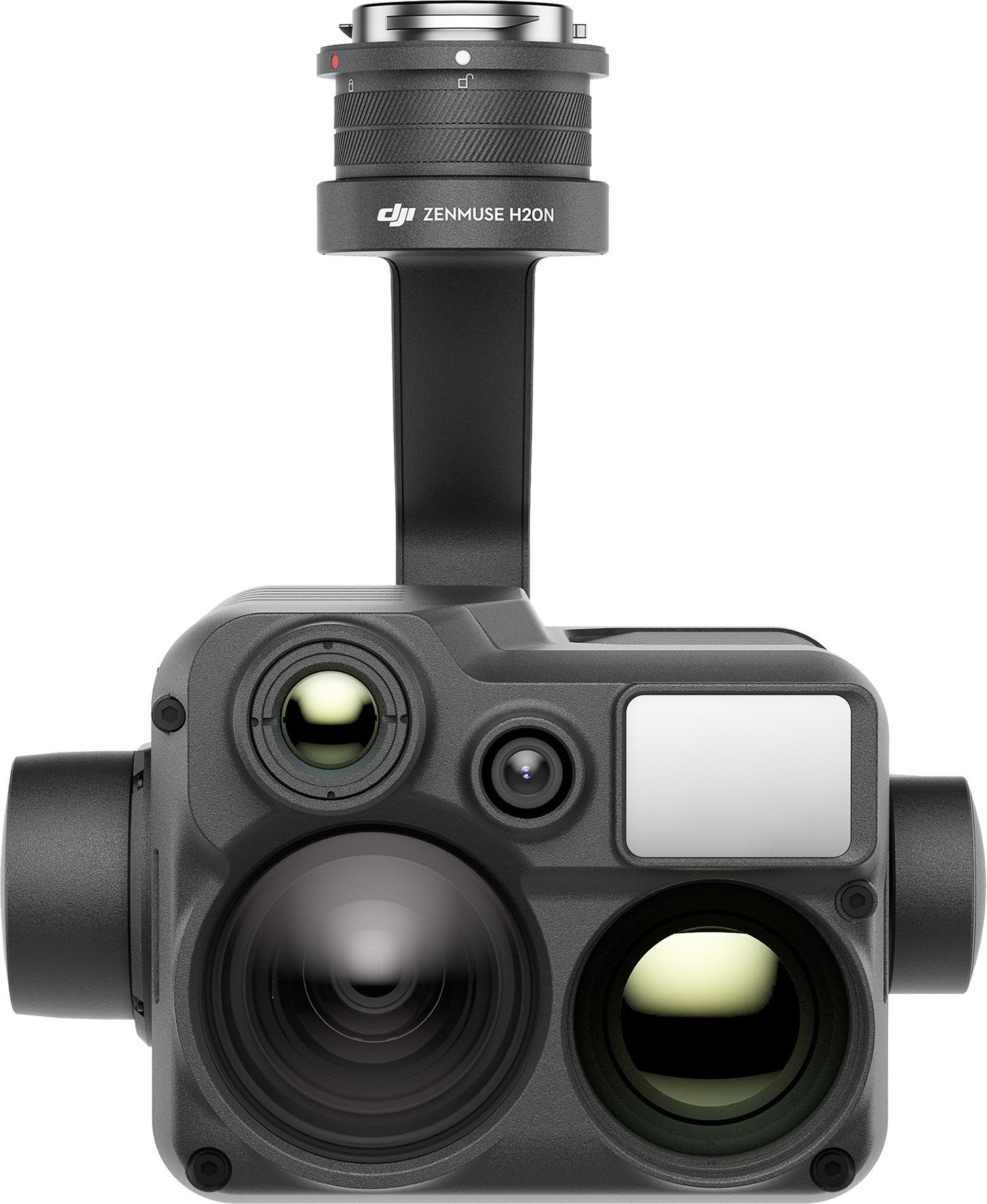

"N" for Night Vision
The Zenmuse H20N integrates starlight sensors into its zoom and wide-angle cameras. Pair this with dual zoom thermal cameras and a laser rangefinder, and you have a versatile hybrid payload that rises to the occasion.

See Through the Night
The zoom and wide-angle cameras are equipped with starlight sensors that are tailor-made for low-light environments.

Infrared Zoom
Two thermal cameras respectively provide 2× and 8× zoom, together enabling up to 32× zoom. Find hotspots and inspect in close detail after zoom-in.

Synchronized Split-screen Zoom
H20N supports synchronized zoom between thermal and starlight night vision cameras. Users can scale both images at the same time. This doubles efficiency and makes it easier to compare details side by side.

Color Palettes
Adjust the colors applied to the thermal data based on the mission requirements.

Isotherms
Visualize a specific band of temperatures to highlight your targets.

Temp. Alarm
Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.

Gain Modes
Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.

R-JPEG Images
Images captured by the Zenmuse H20N are in R-JPEG format with embedded temperature information. By importing these images into the DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.
