Preces apraksts angļu valodā:

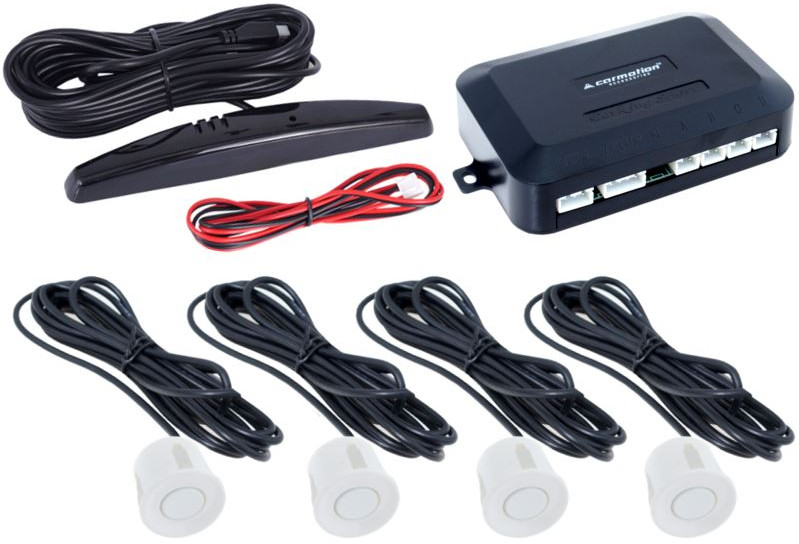

The set consists of ultrasonic sensors, digital display with loudspeaker, control module and power cord. The system detects the distance between the vehicle and the obstacle thanks to ultrasonic sensors installed in the bumper. The display shows the distance to the obstacle, a four-color indicator and the frequency of sounds define the safety zone. The driver can judge the distance, avoid the obstacle and prevent an accident.
Detailed instructions inside the package.
In the package:
• 1 x Control Unit;
• 1 x Power cable for control unit with 3-PIN plug. Cable length: ~ 1m;
• 1 x self-adhesive double-sided tape to fix the control unit;
• 1 x LED display with attached power cord (~ 5.6m) and double-sided adhesive tape to fix it.
• 1 x drill bit - Φ22.5mm
• 1 x User manual
Specifications:
1. Rated voltage: 12V
2. Operating voltage range: 10.5 ~ 16V
3. Rated current: 20mA ~ 200mA
4. Detection distance: 0 - 2.5m
5. Ultrasonic frequency: 40kHz
6. Control unit operating temperature: -30 ~ + 80˚C
7. Display operating temperature: -20 ~ + 60˚C
8. Speaker operating temperature: -30 ~ + 80˚C
9. Detection angle sensors: 90 °
10. Sensors response time: 300ms
11. Sensor diameter: Φ22.5mm
12. Audible alarm when an obstacle is detected within the range: 0.1m ~ 1.5m
13. Audible alarm volume: 73 dB
14. Maximum power consumption: 3.6W
15. Current consumption: 50 ~ 180mA
16. Display dimensions: Width x Depth x Height = 10.0cm x 3.0cm x 2.0cm
17. Dimensions of the control unit: Width x Depth x Height = 9.0cm x 6.0cm x 2.2cm
The set consists of ultrasonic sensors, digital display with loudspeaker, control module and power cord. The system detects the distance between the vehicle and the obstacle thanks to ultrasonic sensors installed in the bumper. The display shows the distance to the obstacle, a four-color indicator and the frequency of sounds define the safety zone. The driver can judge the distance, avoid the obstacle and prevent an accident.
Detailed instructions inside the package.
In the package:
• 1 x Control Unit;
• 1 x Power cable for control unit with 3-PIN plug. Cable length: ~ 1m;
• 1 x self-adhesive double-sided tape to fix the control unit;
• 1 x LED display with attached power cord (~ 5.6m) and double-sided adhesive tape to fix it.
• 1 x drill bit - Φ22.5mm
• 1 x User manual
Specifications:
1. Rated voltage: 12V
2. Operating voltage range: 10.5 ~ 16V
3. Rated current: 20mA ~ 200mA
4. Detection distance: 0 - 2.5m
5. Ultrasonic frequency: 40kHz
6. Control unit operating temperature: -30 ~ + 80˚C
7. Display operating temperature: -20 ~ + 60˚C
8. Speaker operating temperature: -30 ~ + 80˚C
9. Detection angle sensors: 90 °
10. Sensors response time: 300ms
11. Sensor diameter: Φ22.5mm
12. Audible alarm when an obstacle is detected within the range: 0.1m ~ 1.5m
13. Audible alarm volume: 73 dB
14. Maximum power consumption: 3.6W
15. Current consumption: 50 ~ 180mA
16. Display dimensions: Width x Depth x Height = 10.0cm x 3.0cm x 2.0cm
17. Dimensions of the control unit: Width x Depth x Height = 9.0cm x 6.0cm x 2.2cm
