Name: Pumpis EK Water Blocks
Brand: EK Water Blocks
Price: 76.25 EUR
Availability: OutOfStock

Preces informācija

Kopējie parametri

Produkta veids

Pumpji

Zīmols

EK Water Blocks

Paredzētas lietošanai

Dzesēšanas sistēmai

Papildus informācija

Ūdens sūknis ar integrētu rezervuāru

Obligātā garantija

24 mēn

Vai pamanīji kļūdu preces aprakstā, specifikāciju tabulā vai fotoattēlu galerijā? Ziņo mums

Preces krāsa var atšķirties no fotoattēlā redzamās.

Preces apraksts angļu valodā:

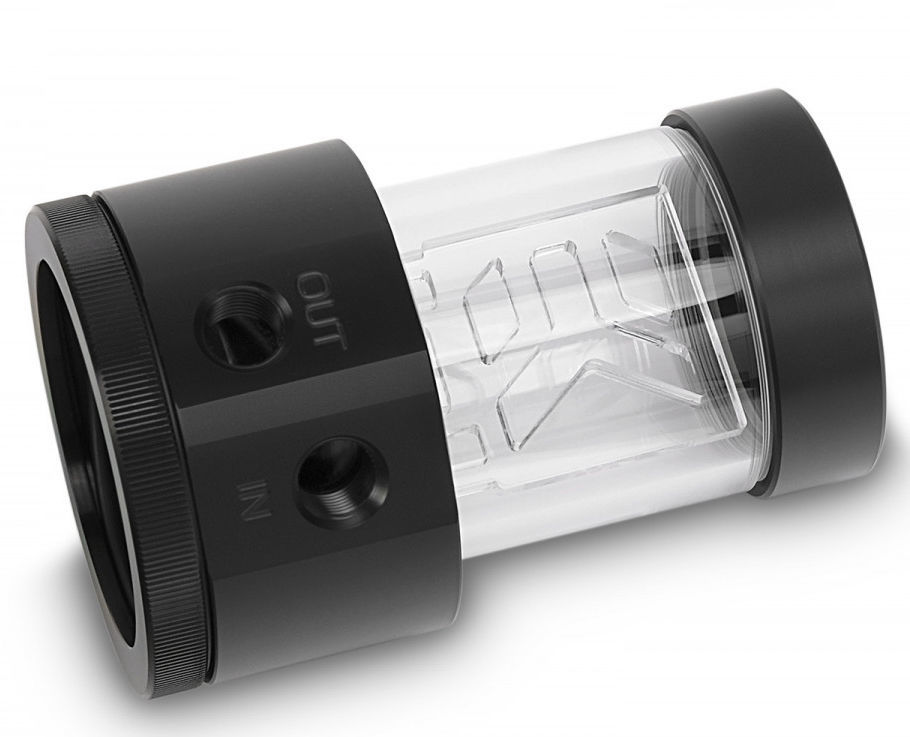

High-performance aftermarket pump top (volute) for Xylem D5 series water pumps with integrated reservoir. This top offer increased hydraulic performance (up to 15%) compared to factory top.

The EK-XRES Revo series features a fully rounded design thus offering greater usability, allowing installation at any angle within 360° of rotation. Special rubber shock absorber is used to de-couple the main pump body from the mounting clip for silent operation, free of vibration induced noise. Additionally, horizontal and vertical positioning are supported for easier tube routing possibilities.

EK-XRES 100 Revo D5 series reservoirs come preinstalled with anti-cyclone insert. Additionally, a PU anti-vortex foam and EK-HD Tube are enclosed.

The tube is made of a quality acrylic material, while the volute/reservoir bottom is made of quality POM Acetal material.

EK-XRES 100 Revo D5 pump can also be upgraded with either:

EK-UNI Pump Bracket (120mm fan) Vertical - For horizontal or vertical installation on any position with 120mm type fan hole pattern
EK-UNI Pump Bracket (140mm fan) Vertical - For horizontal or vertical installation on any position with 140mm type fan hole pattern
EK-UNI Pump Bracket (120mm fan) - For installation with only one orientation on any position with 120mm type fan hole pattern
EK-UNI Pump Bracket (140mm fan) - For installation with only one orientation on any position with 140mm type fan hole pattern

This reservoir can be easily upgraded with longer acrylic tubes used by EK-RES X3 series reservoirs.

The top of this combo unit can be used as an inlet by adding the EK-RES X3 - Multiport TOP and an EK-RES X3 - Internal Tube with the corresponding length to your reservoir size. The Internal Tube is important to prevent the splashing sound of the coolant inside the reservoir and to prevent coolant foaming. It is recommended that the end of the internal inlet tube is submerged in coolant.

Technical specifications:
- Reservoir diameter 60mm
- Reservoir free volume: ~ 125mL
- Overall unit height (with pump): 150mm
- Mounting hole pattern: 65x34mm

Enclosed:
- EK-XRES 100 Revo D5
- Mounting clip with rubber insert
- Self-adhesive mounting hole pattern sticker
- Anti-vortex PU foam and 12mm OD plexiglass tube
- Mounting mechanism (incl. required Allen keys)
- Installation manual
