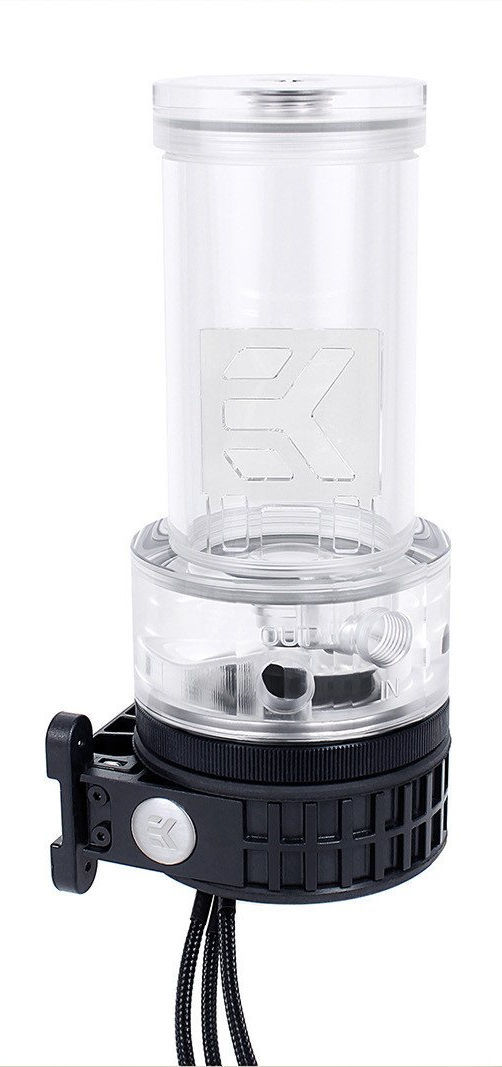

EK-XRES 140 Revo D5 PWM - Plexi is a High-Performance water cooling pump with integrated reservoir. The core of the unit is the market-proven Xylem D5 PWM water pump. This unit offers increased hydraulic performance (up to 15 %) compared to original Xylem D5 PWM.

The EK-XRES Revo D5 series features a fully rounded see-through acrylic design thus offering stunning looks and greater usability. This allows installation at any angle within 360° of rotation. Special rubber shock absorber is used to de-couple the main pump body from the mounting clip for silent operation, free of vibration induced noise. Additionally, horizontal and vertical positioning are supported for easier tube routing possibilities.

EK-XRES 140 Revo D5 - Plexi series reservoirs come preinstalled with anti-cyclone insert. Optional PU anti-vortex foam and EK-HD Tube is enclosed for additional options.

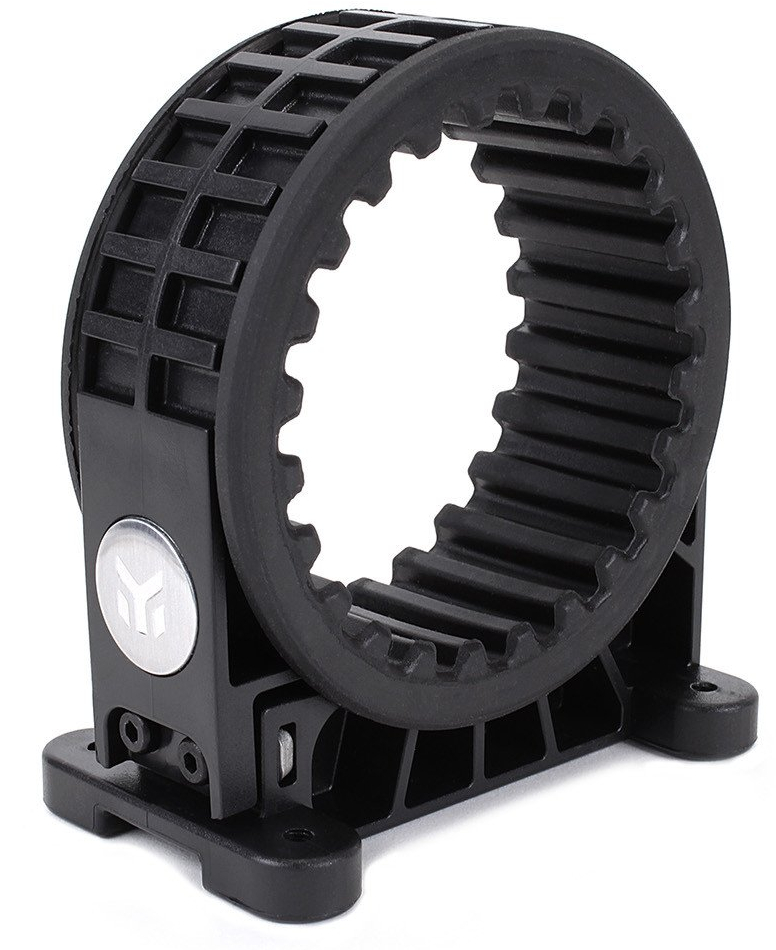

This water pump/reservoir combo unit can be mounted directly on computer chassis by using enclosed Revo D5 Holder.

The 60mm diameter tube is made of a high-quality acrylic material, while the reservoir bottom/pump top is CNC machined acrylic glass.

EK-XRES 140 Revo D5 - Plexi pump combo can also be upgraded with either:

• EK-UNI Pump Bracket (120mm fan) Vertical - For horizontal or vertical installation on any position with 120mm type fan hole pattern
• EK-UNI Pump Bracket (140mm fan) Vertical - For horizontal or vertical installation on any position with 140mm type fan hole pattern
• EK-UNI Pump Bracket (120mm fan) - For installation with only one orientation on any position with 120mm type fan hole pattern
• EK-UNI Pump Bracket (140mm fan) - For installation with only one orientation on any position with 140mm type fan hole pattern

Pump electrical and mechanical properties:
- Motor: Electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 23W
- Maximum pressure head: 3.9m
- Maximum flow: 1500L/h
- Maximum system temperature: 60°C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector
