Rezervuārs EK Water Blocks, 0.25 l, caurspīdīga krās./melna krās.

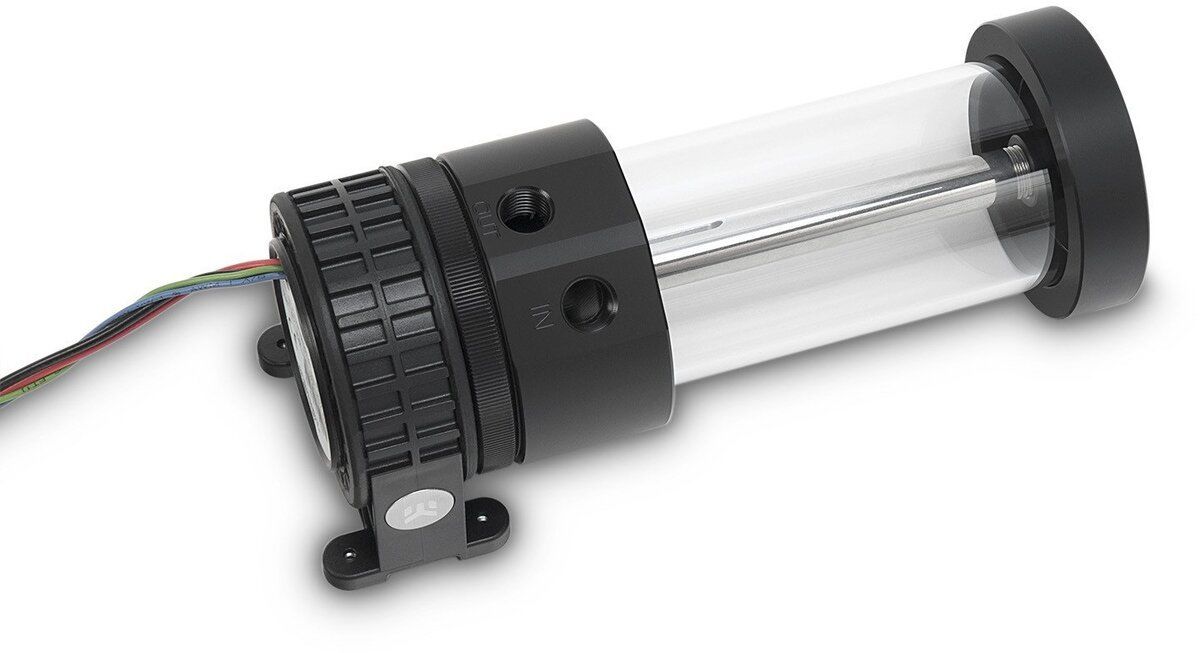

EK-XRES 140 Revo D5 PWM Glass is a High-Performance water cooling pump with integrated reservoir. The core of the unit is the market-proven Xylem D5 PWM water pump. This unit offers increased hydraulic performance (up to 15 %) compared to original Xylem D5 PWM.


EK-XRES 140 Revo D5 Glass series reservoir tube is made out of high-quality borosilicate glass and this is the first differentiation from non-glass Revo reservoirs. The second is pre-installed central Stainless Steel pipe that serves as a suction point - pipe is hollow and is feeding the pump with liquid - and holds the top and bottom together. The tube is threadless and is not compatible with other Revo products.



As with other Revo D5 series products, Glass variant features a fully rounded design thus offering greater usability, allowing installation at any angle within 360° of rotation. The special rubber shock absorber is used to de-couple the main pump body from the mounting clip for silent operation, free of vibration induced noise.

Reservoir's top features three ports, three G1/4" threaded ports, which are intended to be used as fill ports. Any of the top ports can be also used as an inlet port, in that case, EK-Extender M-F G1/4" must be used. Both top and bottom, are made of quality POM Acetal material. Additionally, a PU anti-vortex foam is enclosed and can be used to reduce excessive vortex issues.

Pump electrical and mechanical properties:

- Motor: Electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 23W
- Maximum pressure head: 3.9m
- Maximum flow: 1500L/h
- Maximum system temperature: 60°C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector

Technical specifications:
- Reservoir diameter 60mm (Glass is 3.2mm thick)
- Reservoir free volume: ~ 205mL
- Overall unit height: 190mm
- Mounting hole pattern: 65x34mm

Enclosed:
- EK-XRES 140 Revo D5 PWM (incl. pump) - Glass
- Mounting clip with rubber insert
- Self-adhesive mounting hole pattern sticker
- Anti-vortex PU foam
- Mounting mechanism (incl. required Allen keys)
- Installation manual
