Name: Ūdens bloks EK Water Blocks, caurspīdīga krās./melna krās./hroma krās.
Brand: EK Water Blocks
Price: 136.79 EUR
Availability: OutOfStock

Preces informācija

Kopējie parametri

Produkta veids

Ūdens bloki

Zīmols

EK Water Blocks

Paredzētas lietošanai

Videokartei

Krāsa

Caurspīdīga krās., Hroma krās., Melna krās.

Papildus informācija

4x 1/4" savienojumi. Saderība: AMD Radeon Vega Frontier Edition (reference design). AMD Radeon RX Vega 64 (reference design). AMD Radeon RX Vega 56 (reference design)

Vai pamanīji kļūdu preces aprakstā, specifikāciju tabulā vai fotoattēlu galerijā? Ziņo mums

Preces krāsa var atšķirties no fotoattēlā redzamās.

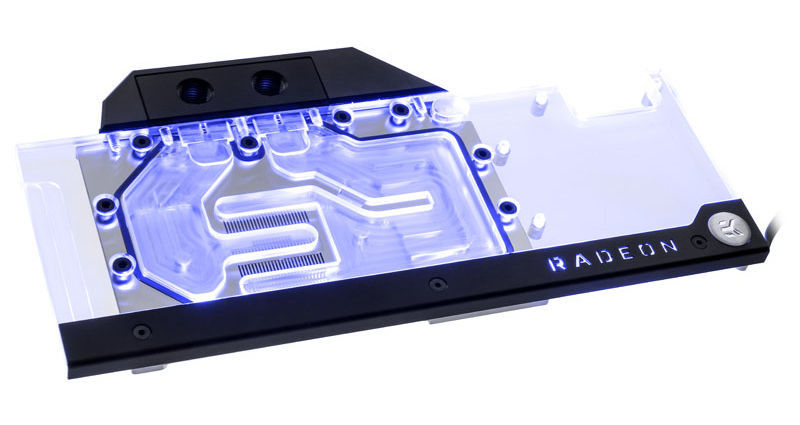

The EK-FC Radeon Vega RGB by EK Water Blocks is a high-quality and powerful heat sink for custom water cooling, which fits on all graphics cards of the AMD Radeon Vega Frontier Edition, Radeon RX Vega 64 & RX Vega 56 series in reference design. Thanks to the optimized channel structure and nickel-plated electrolytic copper block, efficient cooling of the GPU, memory and voltage converter is guaranteed. The heat sink ensures a spectacular look thanks to its transparent acrylic glass lid and integrated RGB lighting. The EKWB EK-FC Radeon Vega RGB water cooling block at a glance:

Perfect fit for Radeon Vega Frontier Edition, RX Vega 64/56 in reference design
High thermal conductivity thanks to nickel-plated electrolytic copper base
Impressive look thanks to transparent acrylic glass lid
Four G1 / 4-inch connections for integration into the circuit
High quality seals for maximum security

The EKWB EK-FC Radeon Vega RGB water cooling block in detail: It is a full block design , which covers all relevant heat sources of the graphics card and thus effectively cools - i.e. the GPU, the memory and the voltage converter. Nickel-plated electrolytic copper and an optimized channel structure are used to optimally transfer the heat.

The exchangeable RGB strip is compatible with all mainboards with a corresponding 4-pin RGB header due to the widespread 4-pin RGB connection . Make sure that the polarity is correct! In combination with a compatible mainboard, the RGB lighting can be controlled via the ASUS Aura Sync or MSI Mystic Light software and synchronized with other RGB components.

The lid is made of transparent acrylic, which in combination with the lighting creates a spectacular look. The connection terminal has four holes (G1 / 4-inch thread). Due to the flat design of the cooler, the connection of several graphics cards in a multi-GPU network is possible without any problems (but without compatibility with EK-FC Bridge or EK-FC Link).

Note 1:Connections that are not included in the scope of delivery are required for integration into the cooling circuit. 1 g of thermal paste and thermal pads are already included to make contact between the cooler and the graphics card. Make sure that the cooler is only suitable for AMD graphics cards of the type Radeon Vega Frontier Edition, RX Vega 64/56 in the reference design! The original cooler must be removed before assembly, which invalidates the manufacturer's guarantee!

Technical details:

Material: nickel-plated electrolytic copper (bottom), acrylic (lid)
Thread: 4x G1 / 4 inches
Compatibility:
AMD Radeon Vega Frontier Edition (reference design)
AMD Radeon RX Vega 64 (reference design)
AMD Radeon RX Vega 56 (reference design)

Attention: Please note that some coolers are delivered with a protective film on the bottom. This must always be removed before assembly and commissioning. We accept no liability for damage caused by incorrect or incorrect assembly and improper use!
